The Arduino MKR Family is engineered for Internet of Things (IoT) applications, offering compact form factors combined with advanced wireless capabilities. Powered by the SAMD21 Cortex-M0+ microcontroller, MKR boards feature built-in connectivity options like Wi-Fi, LoRa, NB-IoT, GSM, and Sigfox.
- SAMD21 ARM Cortex-M0+ based
- Onboard wireless: Wi-Fi, GSM, LoRa, Sigfox
- Integrated crypto chips for secure communications
- Designed for low-power, remote IoT applications
Security is built-in via onboard crypto chips, and compatibility with Arduino Cloud makes remote monitoring and deployment seamless. Whether you’re building a smart sensor, connected device, or industrial IoT solution, MKR boards are your go-to.
MKR Family
Showing all 22 results
-
MKR Family
Official Arduino MKR Zero ABX00012 (I2S bus & SD for sound, music & digital audio data)
SKU: 1052178Arduino MKR Zero ABX00012
- Microcontroller: Based on the SAMD21 ARM Cortex-M0+ processor.
- Operating Voltage: 3.3V (low-power board).
- Clock Speed: 48 MHz.
- Memory: 256 KB flash memory, 32 KB SRAM.
- Input/Output: 22 digital I/O pins, 12 analog inputs, and 1 analog output.
- Communication: Supports I2C, SPI, UART, and CAN bus.
- Storage: MicroSD card slot for additional data storage.
- Audio Features: Built-in DAC (digital-to-analog converter) for audio output.
- Connectivity: Compatible with various shields, and supports external modules for Wi-Fi or Bluetooth (when combined with add-ons like MKR WiFi 1010).
- Power Supply: USB or battery-powered via JST connector.
- Size: Compact form factor for easy integration into projects.
SKU: 1052178 -
MKR Family
Official Arduino MKR Vidor 4000 ABX00022
SKU: 1052177- FPGA: Intel® Cyclone® 10CL016
- PCI: Mini PCI Express port with programmable pins
- Camera Connector: MIPI camera connector
- Microcontroller: SAMD21 Cortex®-M0+ 32bit low power ARM MCU
- Radio module: u-Blox NINA-W102 (datasheet)
- Board Power Supply :(USB/VIN) 5V
- All pins are PWM pins
- MIPI camera connector
- Mini PCI Express port with programmable pins
- Full-Speed USB Device and embedded Host
SKU: 1052177 -
MKR Family
Official Arduino MKR NB 1500 Board ABX00019
SKU: 1582210- Microcontroller Microchip Technology SAMD21 Cortex-M0+ 32bit low power ARM MCU
- Modem U-Blox SARA-R410M-02B
- GSM uFL connector
- microSIM slot
- Operating Voltage 3.3V
- Interfaces I2S, I2C, UART, SPI
- Pinout (Digital, PWM, Analog) 22 I/O Digital (12 PWM), 7 Analog input
SKU: 1582210 -
MKR Family

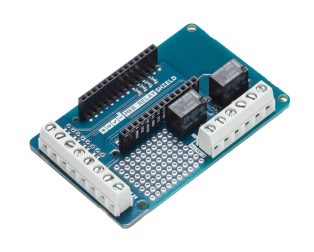

Arduino MKR Relay Proto Shield (TSX00003) – Relay Control Shield for MKR Boards, IoT & Automation Projects
MKR FamilyArduino MKR Relay Proto Shield (TSX00003) – Relay Control Shield for MKR Boards, IoT & Automation Projects
SKU: 1582214- Operating voltage 3.3V (supplied from the host board)
- Two relays with NO, COM, and NC connections
- Works with battery-powered board
- Carry current: 2 A
- Max. operating voltage: 24 VAC, 50 VDC
SKU: 1582214 -
MKR Family

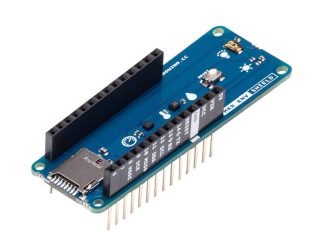

“Official Arduino MKR ENV Shield Rev2 ASX00029 – Advanced Environmental Sensing Module”
SKU: 1292357“The Arduino MKR ENV Shield integrates high-precision sensors for temperature, humidity, barometric pressure, UV, and light intensity, providing reliable environmental data acquisition for IoT, smart agriculture, and monitoring applications.”
SKU: 1292357 -
-
MKR Family
Official Arduino Nesso N1 TPX00227 IoT Development Kit with LoRa, WiFi 6, BLE & Touchscreen
MKR FamilyOfficial Arduino Nesso N1 TPX00227 IoT Development Kit with LoRa, WiFi 6, BLE & Touchscreen
SKU: R258794- Dual RISC-V CPUs (HP 160 MHz, LP 20 MHz)
- Wi-Fi 6, Bluetooth 5.3, Thread, LoRa, Zigbee
- 1.14″ touch display, USB-C, Qwiic & Grove
- Sensors: 6-axis IMU, IR, buzzer, RGB LED
- Memory: 16 MB Flash, 512 KB SRAM, Li-Po battery
SKU: R258794 -
-
MKR Family

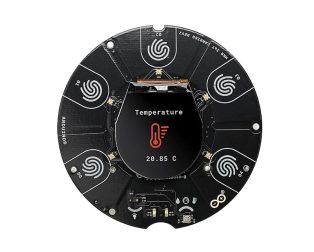

Official Arduino Mkr Iot Carrier Rev2 ABX00073
SKU: 1628494- Ambient light, proximity, color and gesture sensor: APDS-9960
- Capacitive buttons: 5 (Qtouch Pad)
- Actuators: Buzzer, 5 RGB LEDs
- 24V Relays: 2 (V23079)
- Good quality product
- Environment monitoring stations
- GUI IoT interface
SKU: 1628494
