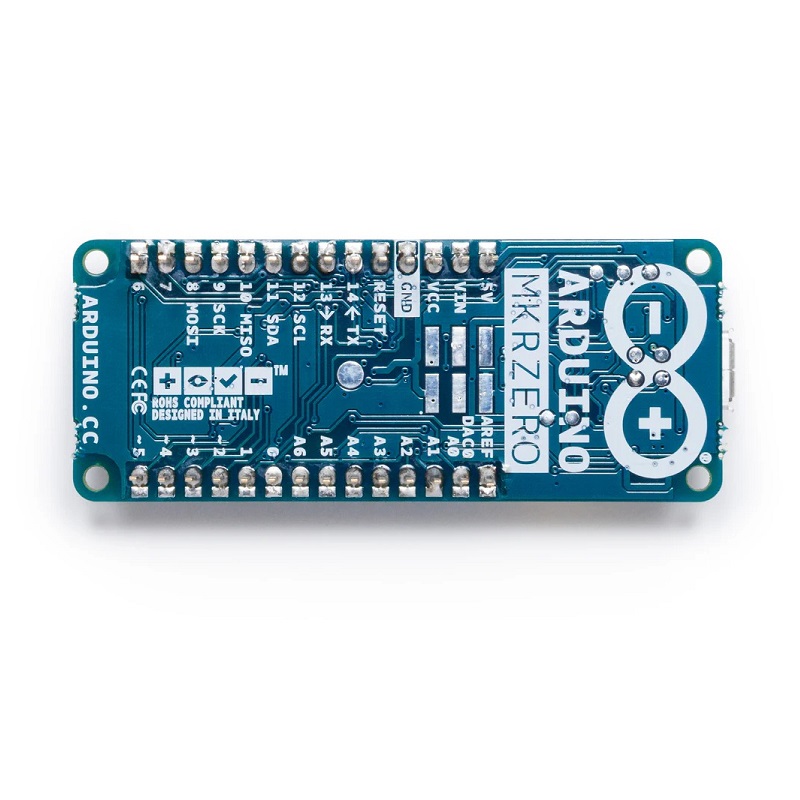

The MKR ZERO board acts as a great educational tool for learning about 32-bit application development. It has an onboard SD connector with dedicated SPI interfaces (SPI1) that allows you to play with MUSIC files with no extra hardware! The board is powered by Atmel’s SAMD21 MCU, which features a 32-bit ARM Cortex® M0+ core.
The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with a LiPo battery. The battery voltage can also be monitored since a connection between the battery and the analog converter of the board exists.
Note: Unlike most Official Arduino & Genuino boards, the MKRZero runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board.
Use your MKR board on Arduino’s IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.
Features:
- Using the popular Arm® Cortex®-M0 32-bit SAMD21 processor
- Comes with a micro SD card holder
- Microcontroller: Based on the SAMD21 ARM Cortex-M0+ processor.
- Operating Voltage: 3.3V (low-power board).
- Clock Speed: 48 MHz.
- Memory: 256 KB flash memory, 32 KB SRAM.
- Input/Output: 22 digital I/O pins, 12 analog inputs, and 1 analog output.
- Communication: Supports I2C, SPI, UART, and CAN bus.
- Storage: MicroSD card slot for additional data storage.
- Audio Features: Built-in DAC (digital-to-analog converter) for audio output.
- Connectivity: Compatible with various shields, and supports external modules for Wi-Fi or Bluetooth (when combined with add-ons like MKR WiFi 1010).
- Power Supply: USB or battery-powered via JST connector.
Size: Compact form factor for easy integration into projects.
Package includes:

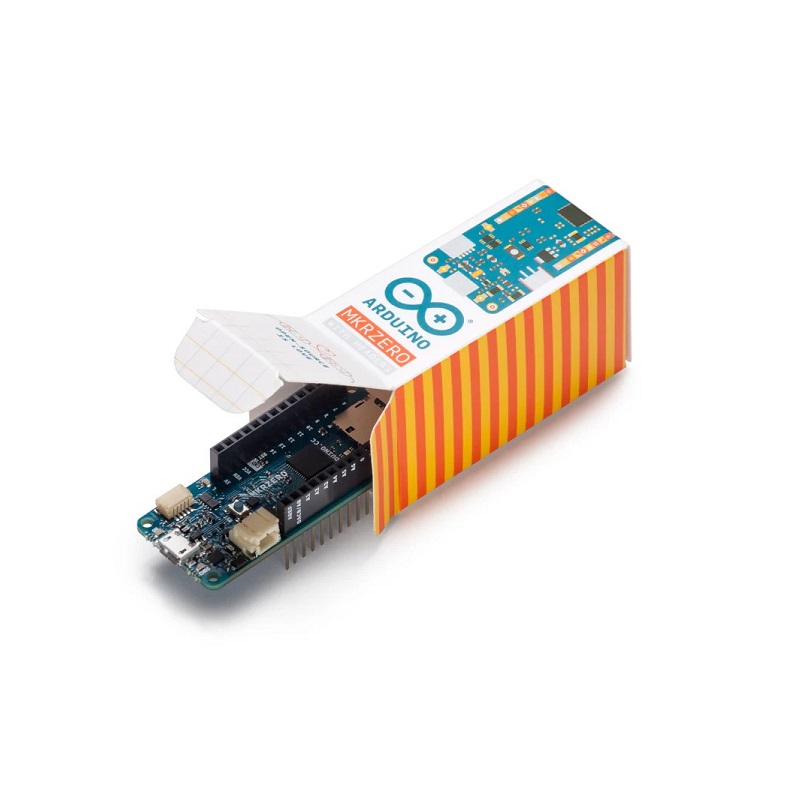

1 x Official Arduino MKR Zero ABX00012 (I2S bus & SD for sound, music & digital audio data)
