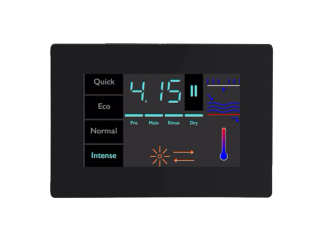

Nextion Intelligent NX4827P043-011R 4.3″ HMI Resistive Touch Display

The Nextion Intelligent NX4827P043-011R is a 4.3″ resistive touch display module designed for creating intuitive Human Machine Interfaces (HMIs). It features a 480×272 LCD-TFT display with 65K RGB colors, powered by a 200 MHz MCU and 128 MB Flash memory. The module supports multiple character encodings and offers over 25 customizable components like buttons, sliders, and gauges. With Nextion Editor software, users can easily design interactive interfaces. It also includes PWM support, 8 GPIO pins, RTC, and EEPROM. Ideal for embedded systems and industrial applications, it operates in a temperature range of -20~70°C and is powered by DC 5V

Note: The small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.

Features:

1. 4.3″ LCD-TFT Display with 480×272 resolution and 65K RGB colors.
2. 200 MHz MCU for fast processing.
3. 128 MB Flash & 512 KB SRAM for storage and performance.
4. Multiple Character Encodings for multi-language support.
5. Nextion Editor Software with 25+ customizable components.
6. 8 GPIO Pins & PWM Support for hardware control.

Package Includes:

1 x Nextion Intelligent NX4827P043_011R 4.3″ HMI Resistive Touch Display
