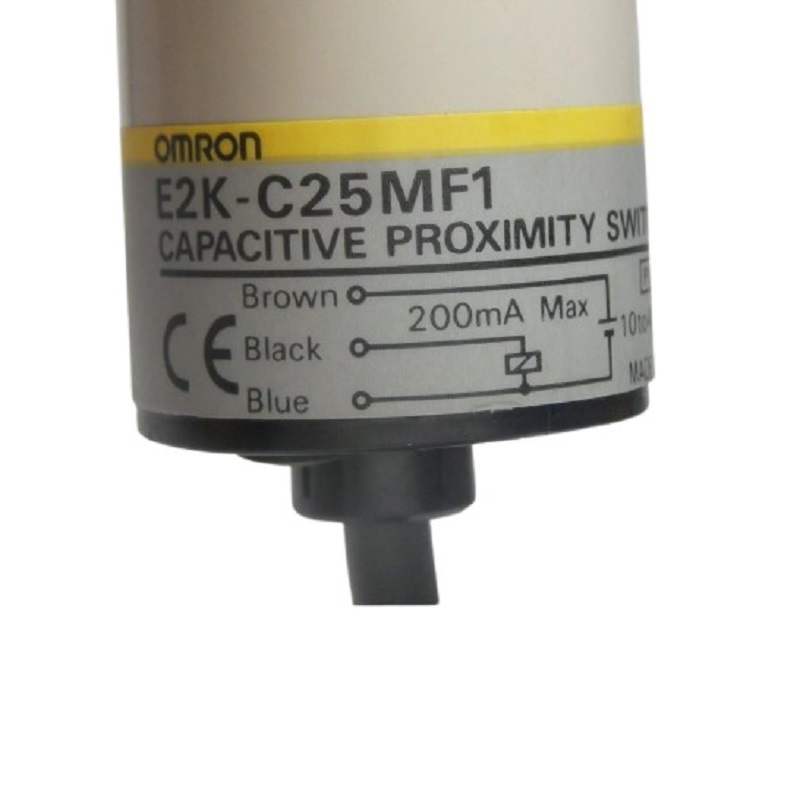

OMRON Proximity Sensor- E2K-C25MF1, Range: 3mm to 25 mm, DC 3-wire, PNP NO

The OMRON E2K-C25MF1 Capacitive Proximity Sensor is a robust, unshielded, cylinder-type sensor with a 34 mm diameter sensing head. Designed for versatile applications, it detects conductors and dielectrics at a distance of up to 25 mm. OMRON Proximity Sensors – E2K-C25MF1 is operating on a 12-24 VDC power source, this sensor features a PNP control output with a maximum switching capacity of 200 mA. It includes protective circuits and is rated IP66 for durability in harsh environments.

Features:

1. Capacitive sensing for detecting conductors and dielectrics
2. Adjustable sensitivity with a 25 mm maximum sensing distance
3. PNP control output with a 200 mA switching capacity
4. Robust design with heat-resistant ABS resin housing
5. IP66-rated for protection against dust and water
6. Protective circuits for reverse polarity and surge suppression

Package Includes:

1 x OMRON Proximity Sensor- E2K-C25MF1, Range: 3mm to 25 mm, DC 3-wire, PNP NO
