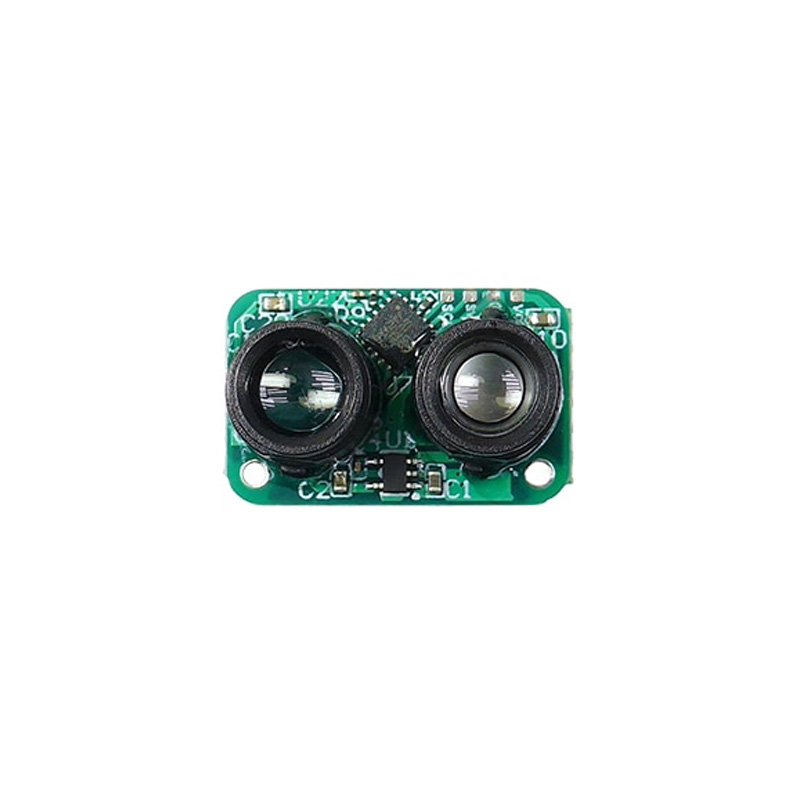

PONO TSD50-50m Single-Point ToF LiDAR Distance Sensor Module, UART, 3.3~5V, 500Hz, Range: 0.05m~50m

The PONO TSD50-50m Single-Point ToF LiDAR Distance Sensor Module is a compact and high-speed ranging solution built on advanced DTOF (Direct Time of Flight) technology. Designed for precision and reliability, it delivers accurate distance measurement up to 50 meters with a fast 500Hz sampling rate. Its strong resistance to ambient light (up to 100KLux) ensures stable performance in challenging environments.

With a lightweight design and small footprint, it is ideal for drones, robotics, and industrial automation systems. Supporting UART/IIC communication, it offers flexible integration with embedded platforms. The module operates on a wide 3.3–5V range, making it suitable for various electronic applications requiring real-time distance sensing and obstacle detection.

Features:

1. DTOF (Direct Time of Flight) technology
2. Up to 50m measuring range
3. High-speed 500Hz sampling rate
4. ±5cm accuracy (<5m), 1% (≥5m)
5. Strong ambient light immunity (100KLux)
6. UART & IIC communication support
7. Wide input voltage (3.3V–5V)

Package Includes:

1 x PONO TSD50-50m Single-Point ToF LiDAR Distance Sensor Module, UART, 3.3~5V, 500Hz, Range: 0.05m~50m

1 x JST PHR 4 pin 2.0mm pitch wire harness
