Multi-Parameter Environmental Sensors

Renke RS-BYH-M-EX Solar Radiation Shield

Name: Renke RS-BYH-M-EX Solar Radiation Shield
SKU: R259756
Price: 9316.00 INR
Availability: InStock

Availability:

In stock

SKU: R259756

Add to Wishlist

Model: RS-BYH-M-EX
Power Supply: 10–30V DC
Power Consumption: 0.8W
Material: Engineering plastic & stainless steel
Operating Temperature: -40°C to +75°C

For bulk orders or B2B inquiries, email us: sales@robu.in

₹ 9,316.00 (Incl. GST)

In stock

Brand: Renke

Category: Multi-Parameter Environmental Sensors

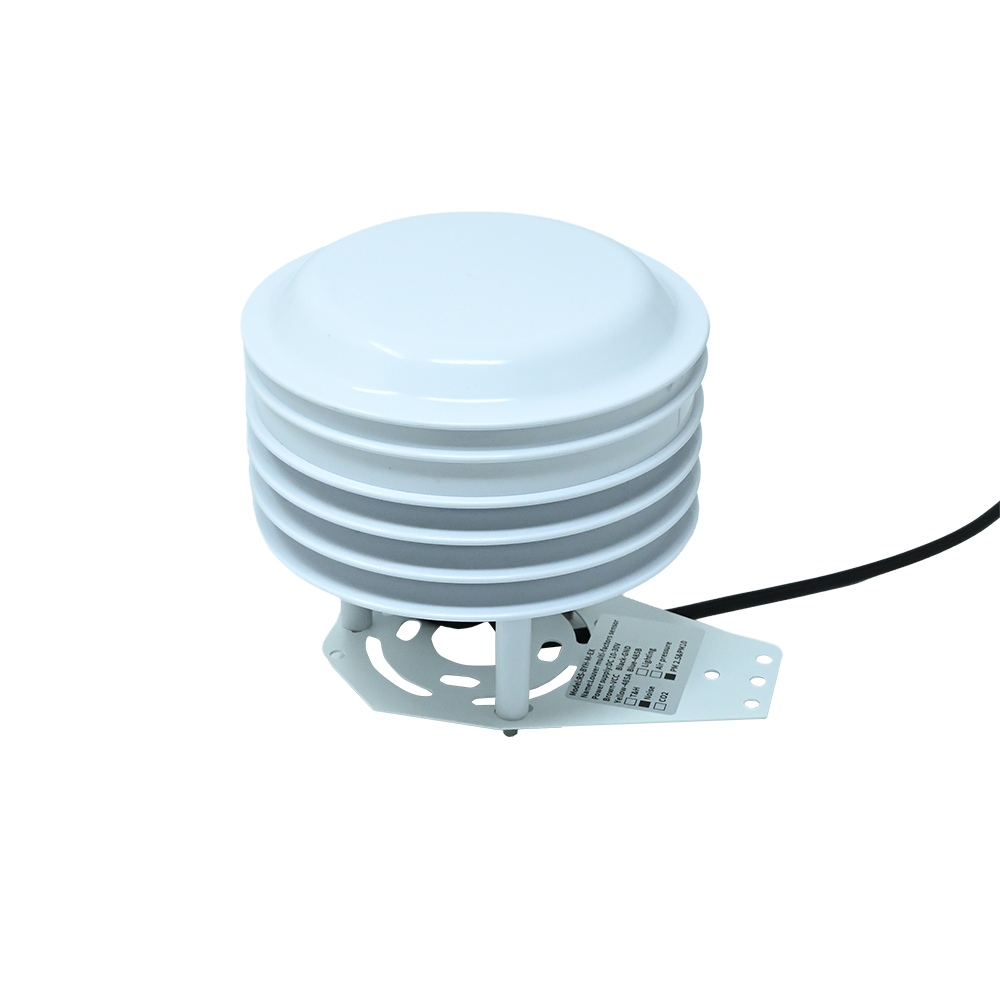

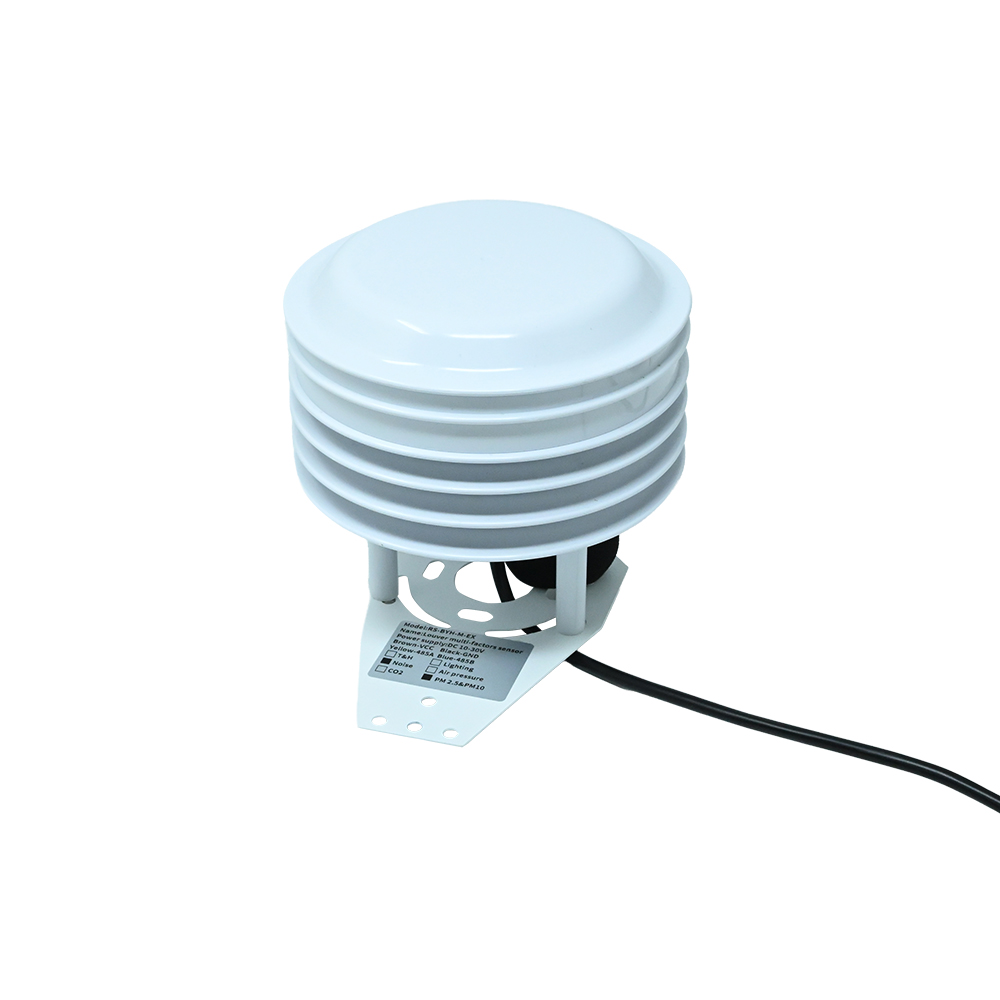

The Renke RS-BYH-M-EX Solar Radiation Shield is a robust outdoor protective enclosure designed for weather station sensors. It effectively shields sensors from direct sunlight, rain, and environmental interference, ensuring precise and stable readings. Built using UV-resistant engineering plastics with stainless steel hardware, it offers long-term durability in harsh environments.

Its multi-plate ventilated structure allows natural airflow while preventing dust, insects, and moisture ingress. The shield supports integration of multiple sensors such as temperature, humidity, CO₂, PM2.5, and pressure sensors. Ideal for meteorological monitoring, environmental research, and industrial applications, it enhances data accuracy by minimizing thermal errors caused by solar radiation and reflected heat.

Features:

UV-resistant, high-strength material
Multi-plate ventilated design
Supports multiple sensor integrations
IP68 waterproof protection
Low thermal conductivity design
Dust, insect & rain protection
Easy installation with bracket
Suitable for harsh outdoor use

Package Includes:

1 x Renke RS-BYH-M-EX Solar Radiation Shield

1 x Fitting Accessory Set

SKU: R259756 Category: Multi-Parameter Environmental Sensors

Item Type:	Louver multi-factor sensor
Model:	RS BYH M EX
PM2.5 / PM10 Range:	0–1000 µg/m³
Power Supply	DC 10-30V
Maximum Power Consumption	0.8W
Temperature Range :	-40°C to +120°C
Humidity Range	0%RH to 99%RH
Pressure Range	0-120kPa(Atmospheric Pressure)
Noise	30 dB to 130 dB(noise range)
Illumination	0–200000 Lux
Accuracy:	Temp: ±0.5°C, Humidity: ±3%RH, Illumination: ±7%, Pressure: ±0.15 kPa, Noise: ±0.5 dB, PM2.5: ±3%FS, CO₂: ±(50ppm+3%FS)
Stability	Temperature: ≤0.1°C/year, Humidity: ≤1%/year, Illumination: ≤5%/year, Atmospheric Pressure: -0.1 kPa/year, Noise: ≤3 dB/year, PM2.5/PM10: ≤1%/year, CO₂: ≤1%/year
Cable Length (m):	2
Length (mm):	145
Width (mm):	145
Height (mm):	130
Weight (g):	536
Shipping Weight	0.72 kg
Shipping Dimensions	18 × 19 × 20 cm

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
