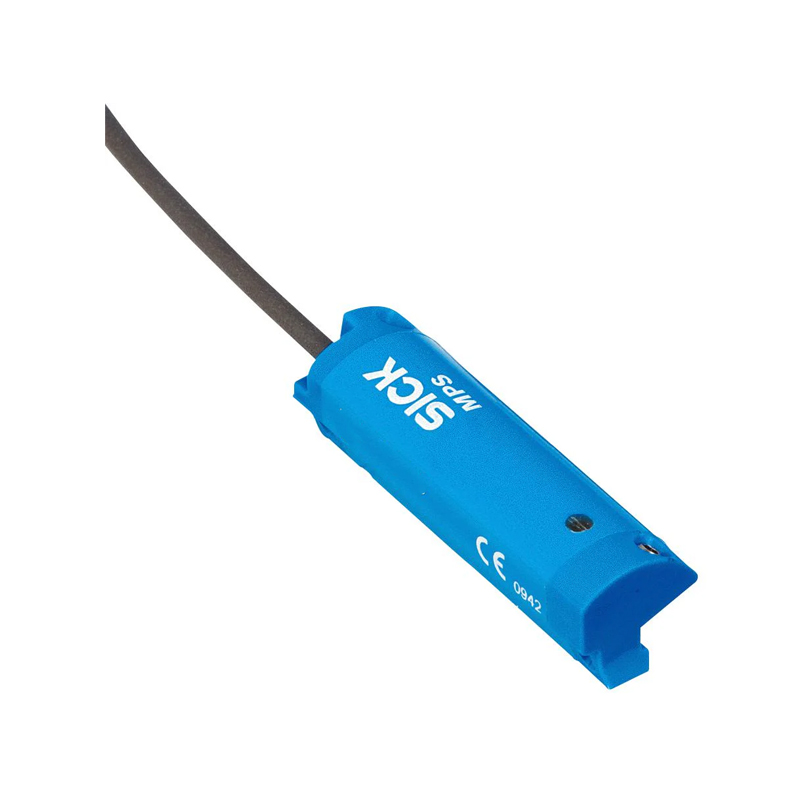

SICK MPS-160TSNP0, Cylinder Position Sensor, T-Type, Analogue, Cable with 4 Pin M8, 15 to 30VDC, IP67, Range: 160mm

SICK MPS-160TSNP0, Cylinder Position Sensor, T-Type, Analogue, Cable with 4 Pin M8, 15 to 30VDC, IP67, Range: 160mm

Availability:

This product is available for backorder only. Approx restocking time is 15-20 Days for more info contact us at info@robu.in
SKU: R261983
Add to Wishlist
  1. Measuring Range: 160 mm
  2. Output Type: Analog
  3. Supply Voltage: 15V to 30V DC
  4. Protection Rating: IP67
  5. Electrical Connection: 4-wire cable with 4-pin M8 connector

For bulk orders or B2B inquiries, email us: sales@robu.in

₹ 46,259.00 (Incl. GST)

This product is available for backorder only. Approx restocking time is 15-20 Days for more info contact us at info@robu.in

Purchase this product now and earn 463 Robu Points!
Bulk Order
Have a Bulk Order?
Click Here
Need Support
Need Support?
Click Here
Free Delivery above ₹999
Free Delivery
above ₹999
1 Year Warranty
6 Months Warranty
Cash On delivery
Cash on Delivery*
Didn’t find what you are looking for?

Brand: SICK
Category: Position Sensors

The SICK MPS-160TSNP0 Cylinder Position Sensor is a high-precision magnetic sensing device designed for continuous position detection in pneumatic cylinders. Engineered for T-slot cylinder mounting, this analogue sensor provides accurate real-time piston position feedback across a measuring range of 160mm.

With a robust IP67-rated housing and reliable 4-pin M8 cable connection, it is suitable for demanding industrial environments. Operating within a 15–30VDC supply range, the sensor ensures stable performance in automation, material handling, and process control applications. Its compact design and easy installation make it ideal for modern smart factory systems.

Features:

  1. Magnetic sensing for precise piston position detection
  2. Analogue output for continuous position monitoring
  3. Designed for T-slot pneumatic cylinders
  4. Rugged IP67 protection for harsh environments
  5. Compact design with easy installation

Package Includes:

1 x SICK MPS-160TSNP0, Cylinder Position Sensor, T-Type, Analogue, Cable with 4 Pin M8, 15 to 30VDC, IP67, Range: 160mm

SKU: R261983 Category:
Item Type:

Position Sensor
Model No:

MPS-160TSNP0
Measuring Range(mm):

160
Output Type:

Analog
Cylinder Type:

T-Type
Supply Voltage

15V to 30V DC
Protection

IP67
Connection

4-wire cable with 4-pin M8 connector
Length (mm):

173
Width (mm):

30
Height (mm):

14
Weight (g):

111
Shipping Weight 1 kg
Shipping Dimensions 20 × 15 × 10 cm
6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “SICK MPS-160TSNP0, Cylinder Position Sensor, T-Type, Analogue, Cable with 4 Pin M8, 15 to 30VDC, IP67, Range: 160mm”

There are no reviews yet.

Datasheet

DOWNLOAD

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Only registered users are eligible to enter questions
Country Of Origin: India
