SmartElex TLC-555 PWM Output Generator
SmartElex TLC-555 PWM Output Generator

SmartElex TLC-555 PWM Output Generator

Availability:

Out of stock
SKU: R196227
Add to Wishlist
  1. Adjustable square wave PWM output generator.
  2. Power input: 3V to 12V DC with onboard regulation.
  3. Output capped at 5V for safe operation.
  4. Frequency ranges: 1.5K25 KHz or 1.5250 Hz.
  5. Fine-tune frequency using an onboard trimmer pot.
  6. Ideal for PC fan simulation, IR modulation, and audio applications.

For bulk orders or B2B inquiries, email us: sales@robu.in

₹ 329.00 (Incl. GST)

Out of stock

Bulk Order
Have a Bulk Order?
Click Here
Need Support
Need Support?
Click Here
Free Delivery above ₹999
Free Delivery
above ₹999
1 Year Warranty
1 Year Warranty
Cash On delivery
Cash on Delivery*
Didn’t find what you are looking for?

You must register to use the waitlist feature. Please login or create an account
Brand: SmartElex
Category: SmartElex Signal Generator Modules

The SmartElex TLC-555 PWM Output Generator is a multi-purpose solution for creating adjustable square waves across a range of applications. Powered by 3V to 12V DC, it features an onboard regulator that caps output at 5V for safe operation. With selectable frequency ranges from 1.5K to 25 KHz or 1.5 to 250 Hz, and a trimmer pot for fine-tuning, this board is perfect for PC fan simulation, IR signal modulation, audio inputs, and more.

Features:

  1. Generates adjustable square waves with precise control.
  2. Powered by 3V to 12V DC with onboard regulation.
  3. Output capped at 5V for safety and logic compatibility.
  4. Frequency range options: 1.5K25 KHz or 1.5250 Hz.
  5. Onboard trimmer pot for easy frequency tuning.
  6. Uses 74HC1G04 buffer to sink/source up to 12.5mA.

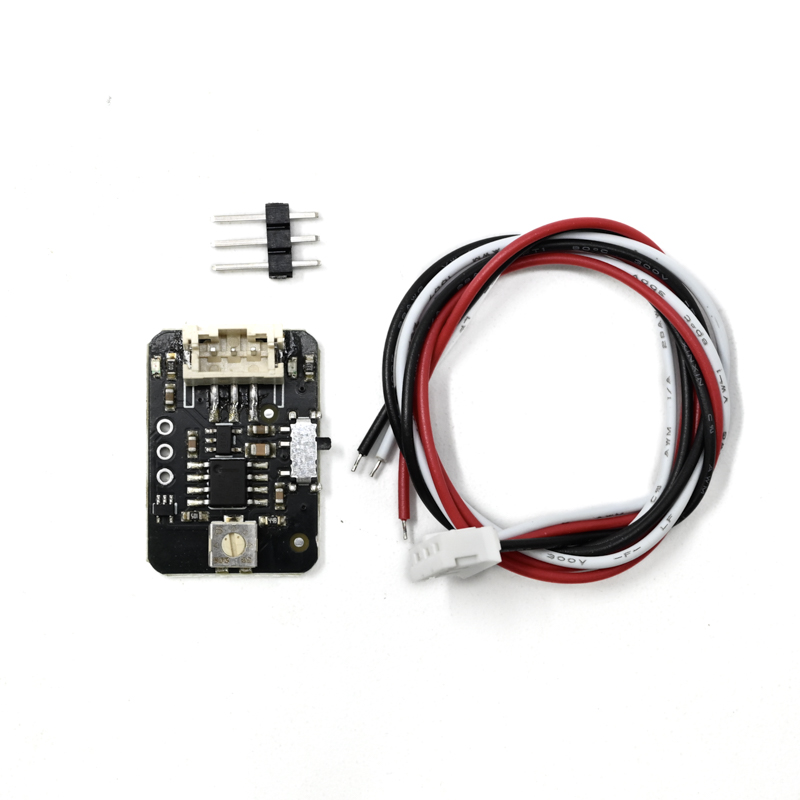

Package Includes:

1 x SmartElex TLC-555 PWM Output Generator

1 x Berg pin

1 x Connecting cable

SKU: R196227 Category:
Item Type:

PWM Output Generator
Power Input(V)

3 to 12
Output Voltage (V):

5
Frequency Range:

1.5~250 Hz, 1.5K~25 KHz
Shipping Weight 0.015 kg
Shipping Dimensions 6 × 6 × 3 cm
1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
