The UBYTE–SmartWheels JTAG Adapter converts the standard 20-pin 2.54 mm JTAG header into the smaller 10-pin 1.27 mm connector found on many modern ARM Cortex-M boards. This allows you to connect traditional debugging tools to compact hardware without compatibility issues.
Built for Everyday Use:
- Standard Compliant – Uses the official ARM JTAG/SWD pinout to guarantee correct
signal mapping and stable connections. - Tool Friendly – Compatible with widely used debuggers such as Segger J-LINK, ARM-
USB-OCD, ARM-USB-TINY, and many more. - Compact & Practical – Small board size with M3 mounting holes makes it easy to fix
securely in enclosures, test rigs, or development setups.
Safe and User-Focused Design:
- ESD Protection Ring – The board includes a protective ESD guard ring. This feature
directs static electricity safely to ground instead of sensitive signal lines, making the
adapter safer to handle by hand during development. - Cable Included – Each adapter ships with a 20 cm 10-pin 1.27 mm JTAG ribbon
cable, so you can start working immediately without hunting for the right accessories.
Key Benefits:
- Converts 20-pin 2.54 mm JTAG header to 10-pin 1.27 mm ARM Cortex-M header
Fully compliant with ARM JTAG/SWD pinout standard - Compatible with Segger J-LINK, ARM-USB-OCD/TINY, and other JTAG/SWD
programmers - Compact PCB with M3 mounting holes for secure installation
- Safer to use thanks to the integrated ESD guard ring
- Supplied with a 20 cm 10-pin 1.27 mm JTAG ribbon cable
Features:
- Converts 20-pin 2.54 mm JTAG header to 10-pin 1.27 mm header
- ARM JTAG/SWD standard-compliant signal mapping
- Works with Segger J-LINK, ARM-USB-OCD/TINY, and other tools
- Compact PCB with M3 mounting holes for easy installation
- ESD protection ring ensures safe and reliable use
- Plug-and-play with included 15 cm ribbon cable
- Durable build for long-term development use
- Lightweight and portable design
Package Includes:

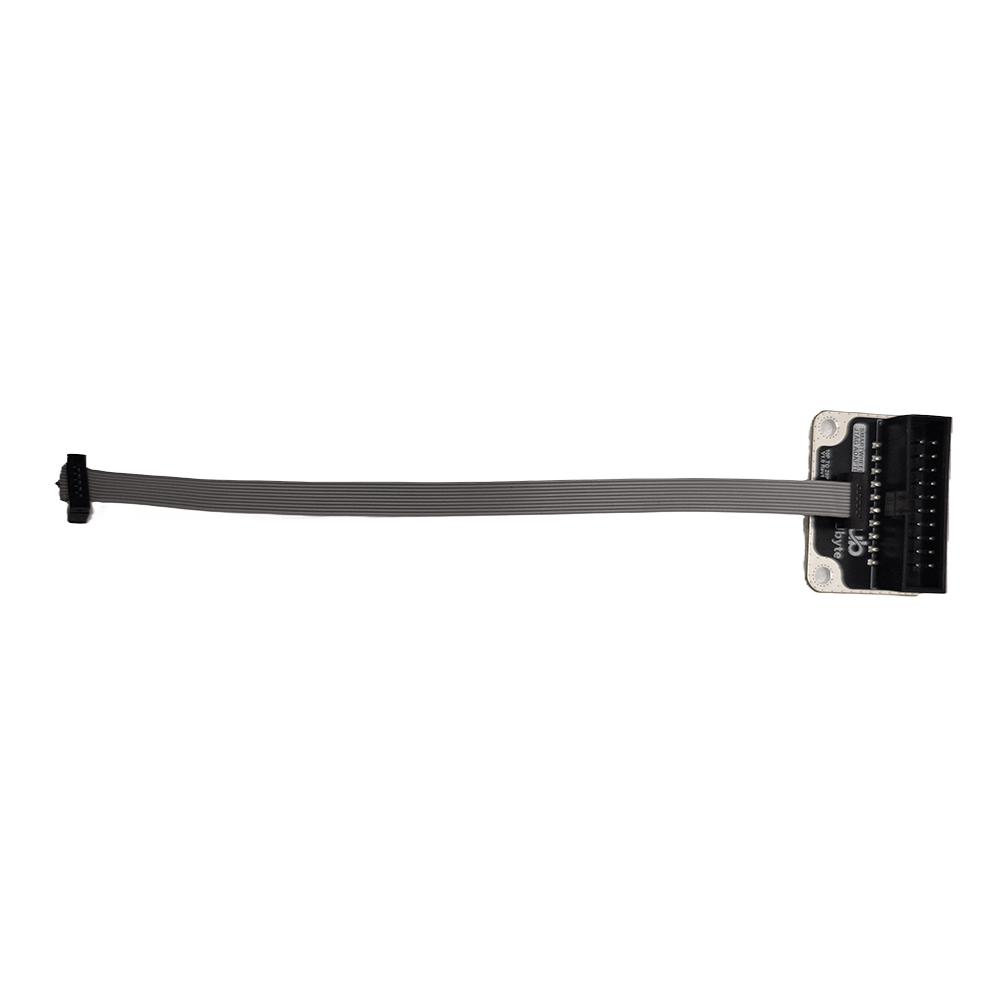

1 x SmartWheels JTAG Adapter
1 x 10 Pin 1.27mm FPC Cable 20cm
