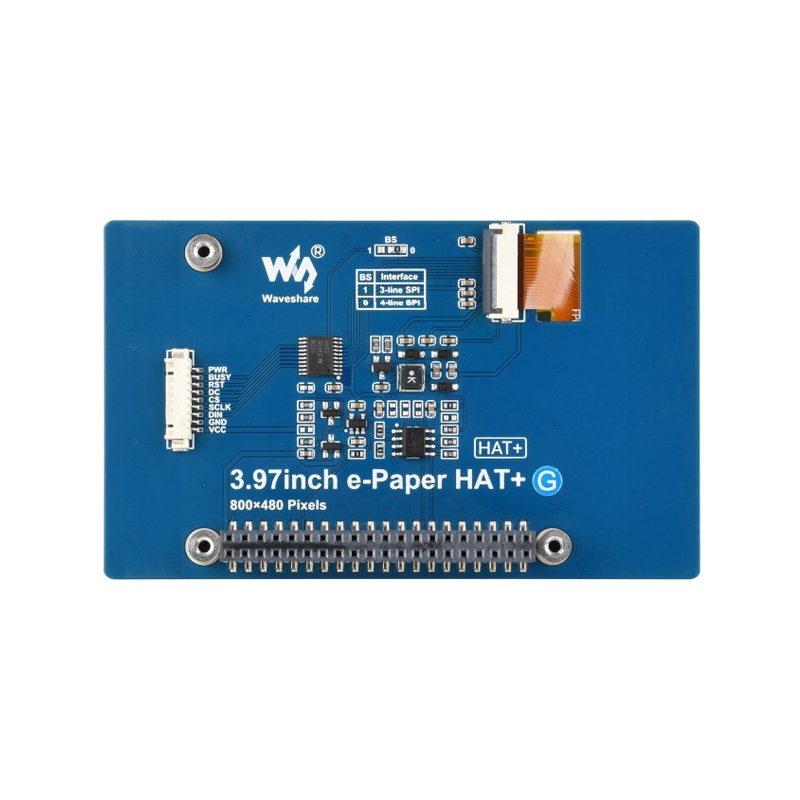

Waveshare 3.97inch 800 × 480 pixels Red/Yellow/Black/White E-Paper Display (G) with Driver Board, SPI Interface and Standard Raspberry Pi 40PIN GPIO header

The Waveshare 3.97-inch E-Paper Display (G) offers a vibrant, energy-efficient screen with 800×480 resolution in red/yellow/black/white. Designed for Raspberry Pi, Jetson Nano, and various MCUs, it features an SPI interface and a standard 40-PIN GPIO header for seamless integration. This e-paper display is ultra-low power and keeps the last image even when powered off—ideal for dynamic shelf labels, industrial tags, or e-notices.

Available with or without a driver board, it supports fast development with included resources for Raspberry Pi, Arduino, STM32, and ESP32. The wide viewing angle and paper-like readability under ambient light make it perfect for indoor signage or embedded projects.

Features:

1. 800×480 resolution with Red/Yellow/Black/White display
2. Ultra-low power consumption, retains image without power
3. Wide >170° viewing angle with paper-like readability
4. No backlight; uses ambient light for visibility
5. Compatible with Raspberry Pi, Arduino, STM32, and ESP32
6. SPI interface with onboard voltage translator (3.3V/5V)
7. Standard Raspberry Pi 40-PIN GPIO header
8. Comes with online manuals and development resources

Package Includes:

1 x 3.97inch e-Paper (G)

1 x MX1.25 9PIN cable

1 x Screws pack
