The Waveshare Open405R-C Package A is an STM32 development board designed around the STM32F405RGT6 microcontroller. It includes a motherboard and an MCU core board, Core405R, supporting various expansions for specific applications. With a modular and open design, it is ideal for developing applications using STM32F4 series microcontrollers. It features multiple interfaces, connectivity options, and power configurations, making it versatile and robust for various development needs.
Note:
The Open405R-C supports programming via STM32 UART bootloader, a USB TO UART accessory board is also provided in the package.
The Open405R-C does NOT integrate any debugging function, a debugger is required.
Useful Link:
https://www.waveshare.com/wiki/Open405R-C
Features:

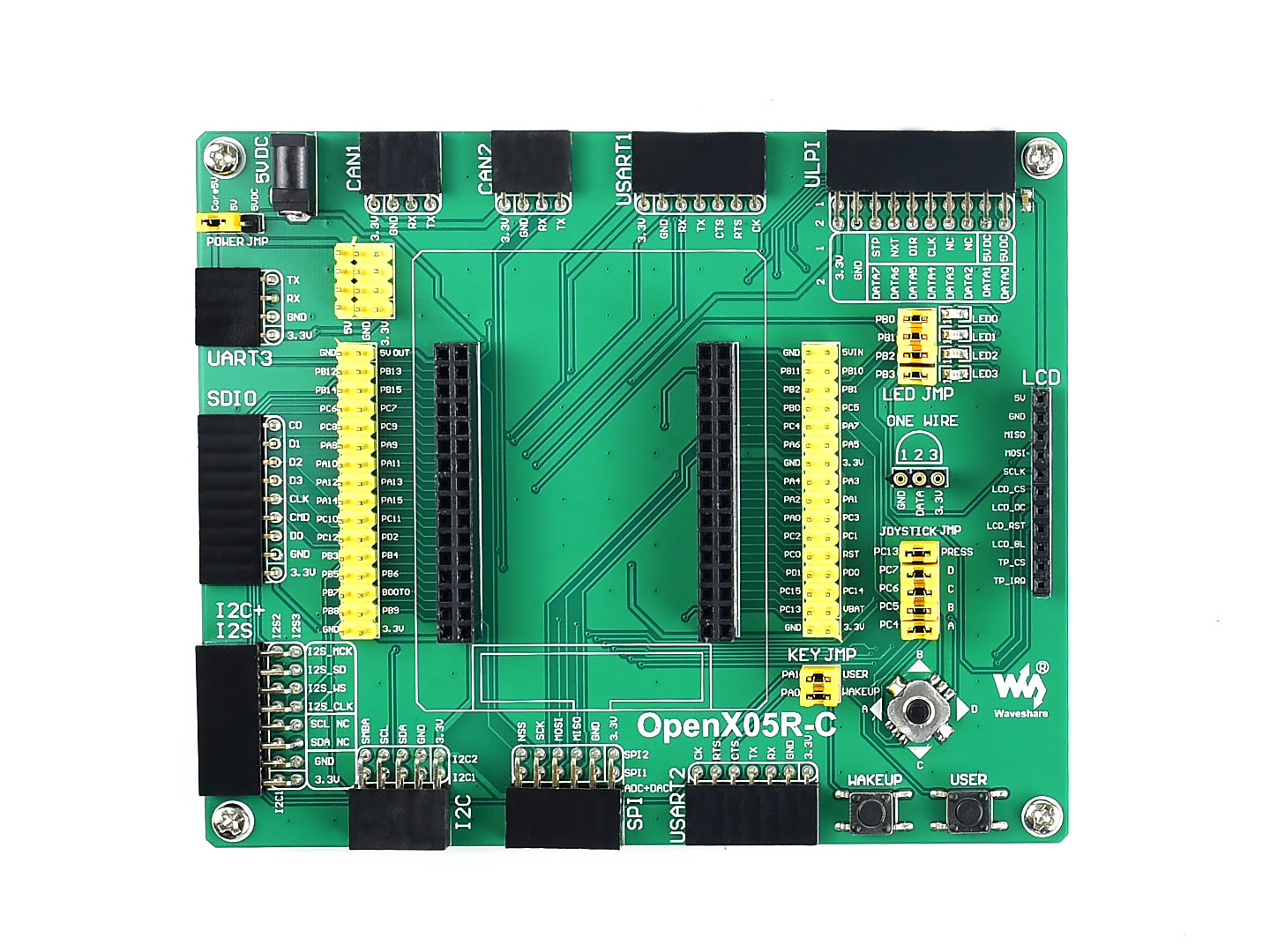

- Modular Design: Consists of a motherboard and Core405R MCU core board.
- Multiple Interfaces: Includes UART, SDIO, I2S, I2C, SPI, CAN, LCD, ULPI, ONE-WIRE, etc.
- Power Options: 5V DC jack, 5V/3.3V power input/output, power selection jumper.
- Expansion Friendly: VCC, GND, and I/O ports accessible for further expansion.
- User Interaction: LEDs, user key, wake-up button, joystick.
- High Performance: STM32F405RGT6 microcontroller with Cortex-M4 core, 168MHz, 1MB Flash, 192+4kB SRAM.
Package Includes:
1 x Waveshare Open405R-C Package A, STM32F4 Development Board
